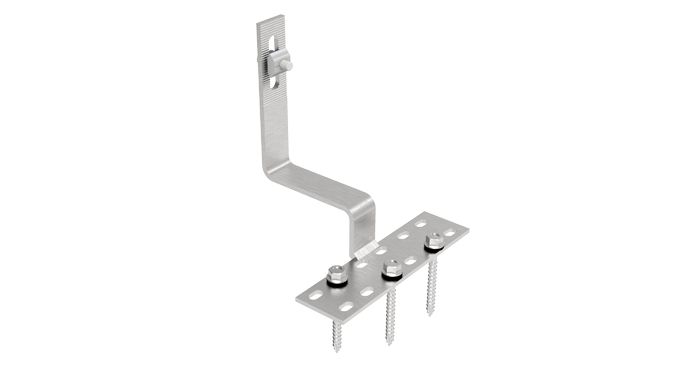

Tile Roof Hook 1# Solar Mounting
WOCHN 1# hook is tile roof hook for solar installation on residential and commercial tiled roofs. It's suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook easy compatible with WOCHN 5L rail system or any rail system to make the system more strong and robust. Simple design to achieve quickest installation. The 1# tiled roof hook is made of high-quality stainless steel. This steel type has a longer lifespan,is highly resistant to corrosion.
Features

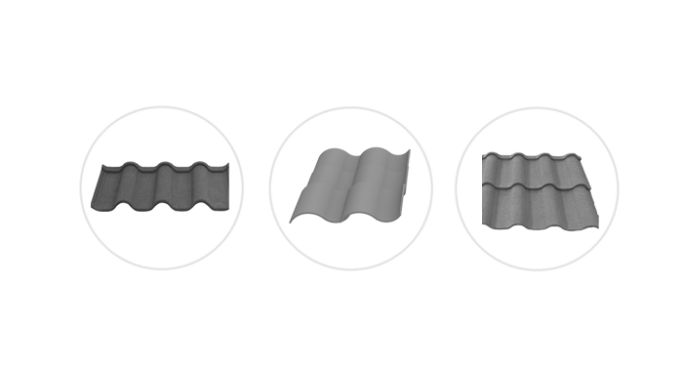

Universal
Suitable for solar installation on Pantiles roof, Slate roof, Plain tiles roof, Flat tile roof, Spanish tile roof, etc.

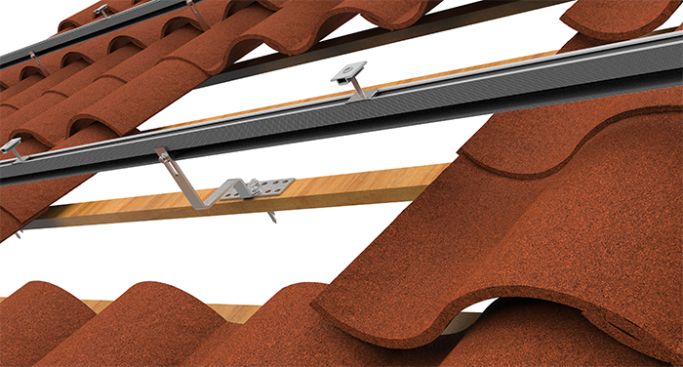

Strong & Quick Mounting
Made by stainless 304, highly anti-rust and big wind and snow load ability.
Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns.

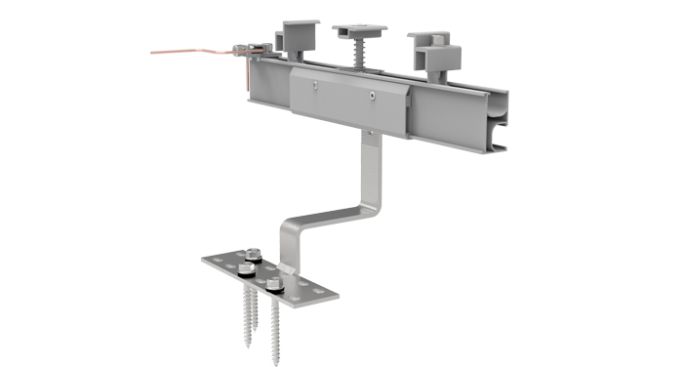

Flexibility
Easy to adjust solar rail system height with range 0 to 50mm, flexibility to meet small adjustment to come to the tilt angles.
12 holes on the base plate for easy to find the roof substructures location and fixing.

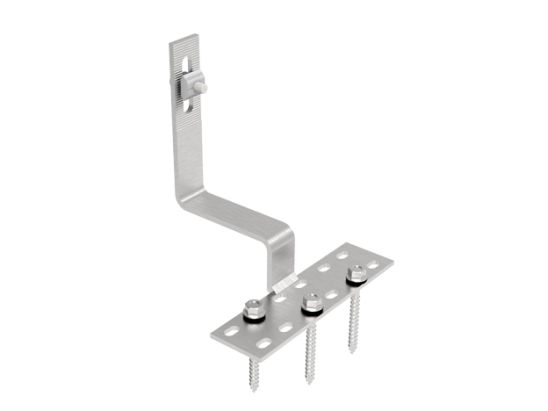

Components
| Part Name | Quantity | Specification | Material |
| 1# hook | 1 | 180*40*120 mm | Stainless steel SUS304 |
| Self driling screw | 3 | M6.3*80mm | Stainless steel |
| Nut Kits | 1 | 5# rail nut kits | Aluminium and steel |

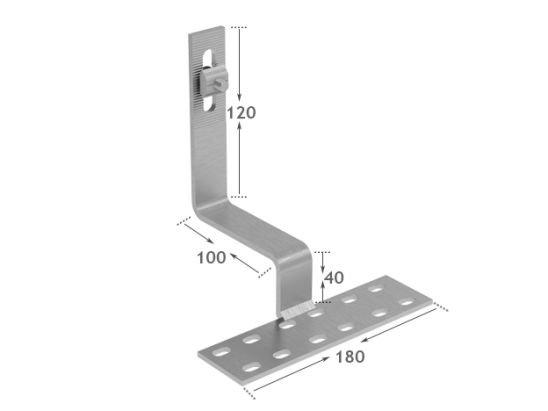

Technical Data
| Product name | Tile roof hook 1#Mounting System |
| Application | Tile roof |
| Inclination | Any roof inclination |
| Material | Stainless SUS304 |
| Finish | Nature |
| PV module | Framed or Unfreamed |
| Module size | Small and Big modules |
| Module orientation | Portrait and Landscape |
| Module direction | Any direction |
| Design wind loading | Up to 60m/s |
| Design snow loading | Up to 1 metre |
| Roof height | Up to 20 metre |
| Design Standard | EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV |
