π MiniRail System Solar Mounting

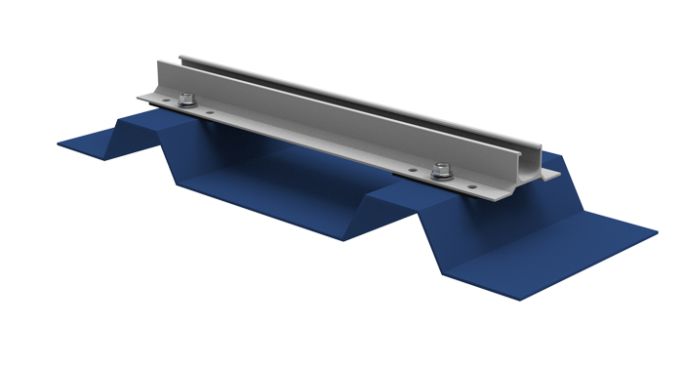

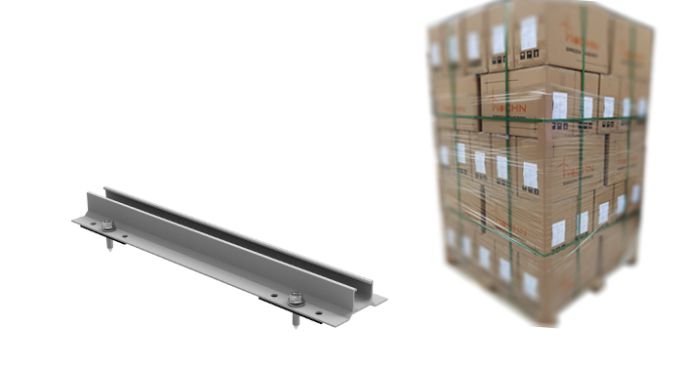

WOCHN π mini rail mounting system for solar installation has been specially developed for metal sheet roof, like trapezoidal sheet roof and corrugated iron roofs. It's a variant of Mini rail system and impresses with its universality and simplicity. The whole system consists only four components and easy to install. This system is workable for both portrait and landscape orientation. Watertight seal is dispalyed by using the four EPDM mat. Short rail system with pre-punched holes for quick mounting.
Features
Universal
Universal for solar installation on pitched roofs with trapezoidal sheet metal , sandwich panels roofs, corrugated iron roofs in different size.

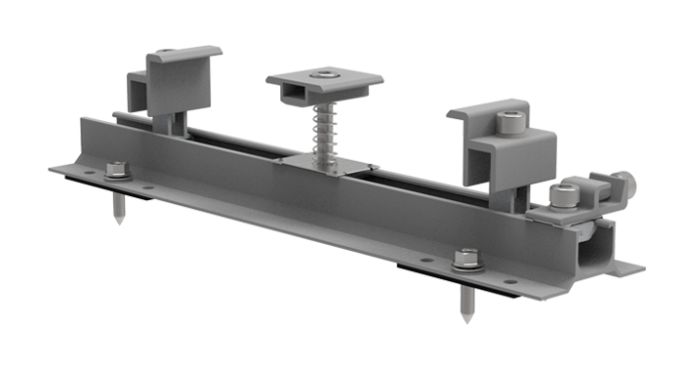

Universal Mid Clamps and End Clamps used for different thickness Solar Modules.

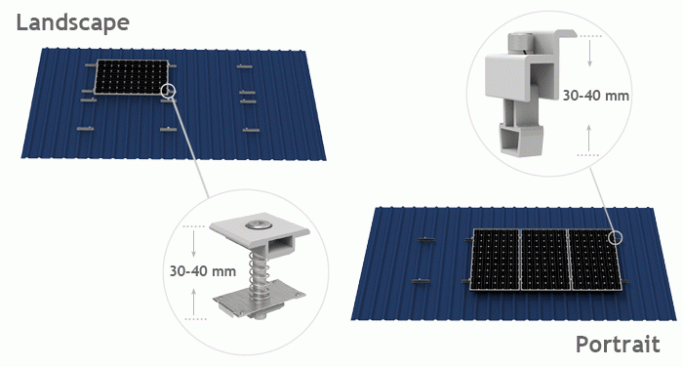

Universal for landscape and portrait Solar Installation.
Quick Mounting
Only 4 components required.
Faster to handle short Mini Rail System compared with long Rail System.
EU and UL standared self-tapping screws used, no pre-drilling and strong loading ability.
Self-adhesive EPDM mat pasted and self-tapping screws with sealing washers , double protection for weatherproof, no addition glue needed.
Easy and Cost-effective
Easy to transport and handle to roof top.
Easy to make fast installation.
Easy to make stock to distribute.
Easy to save logical cost, installation cost,labor cost.
Components
| Part Name | Quantity | Specification | Material |

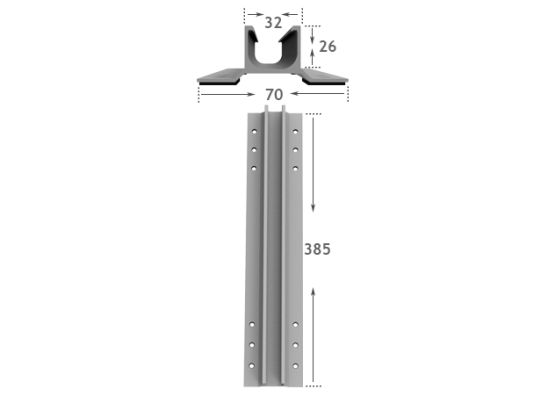

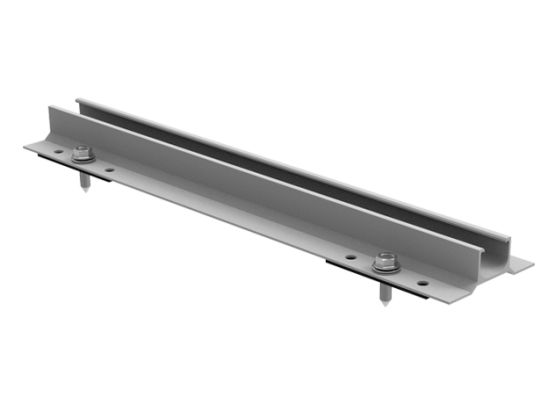

| π Mini rail | 1 | L=385mm | Anodized Aluminium 6005-T5 |
| Self driling screw | 4 | M6.3*25mm | SUS410 |
| EPDM pad | 4 | 20*80mm | EPDM |
Technical Data
| Product name | π MiniRail system |
| Application | Trapezoidal sheet metal, sandwich panels, corrugated sheet roofs |
| Inclination | Any roof inclination |
| Material | Stainless SUS304 |
| Finish | Nature |
| PV module | Framed or Unfreamed |
| Module size | Small and Big modules |
| Module orientation | Portrait and Landscape |
| Module direction | Any direction |
| Design wind loading | Up to 60m/s |
| Design snow loading | Up to 1 metre |
| Roof height | Up to 20 metre |
| Design Standard | EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV |
