    Tile Roof Hook 66# Solar Mounting

  • Tile Roof Hook 66# Solar Mounting

    Tile Roof Hook 66# Solar Mounting

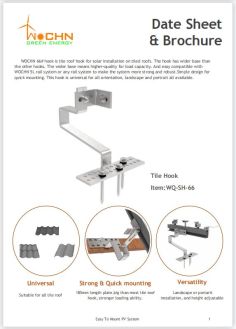

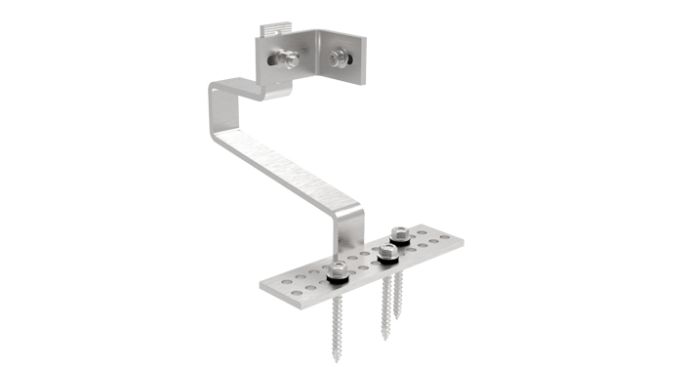

WOCHN 66# hook is tile roof hook for solar installation on tiled roofs. It's suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook has wider base than the other hooks. The wider base means higher-quality for load capacity. And easy compatible with WOCHN 5L rail system or any rail system to make the system more strong and robust.Simple design for quick mounting. This hook is universal for all orientation, landscape and portrait all available.The 66# tiled roof hook is made of high-quality stainless steel. This steel type has a longer lifespan,is highly resistant to corrosion.

Features

Universality

Universality

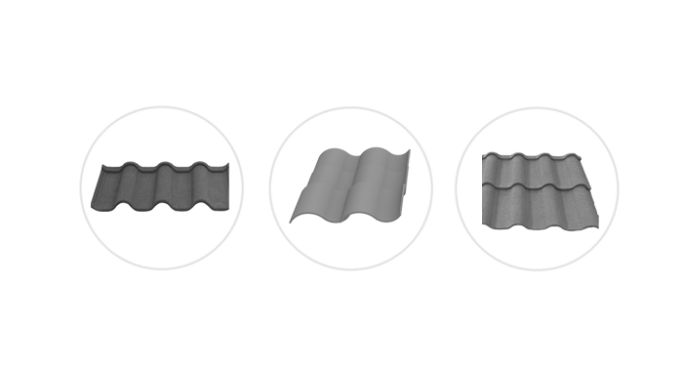

Universal for all tiled roofs, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile.

Versatility

Versatility

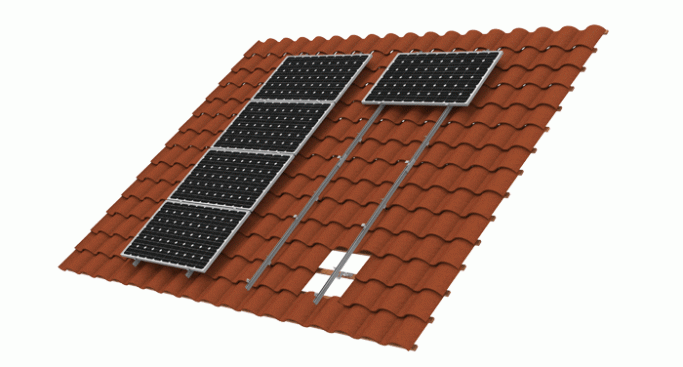

Both landscape and portarit solar installation are workable, easy to adjust the layout depend on roof limited space.

Easy to adjust solar rail system height with range 0 to 50mm, flexibility to meet small adjustment to come to the tilt angles.

25 holes on the base plate for easy to find the roof substructures location and fixing.

Strong & Quick Mounting

Strong & Quick Mounting

Made by stainless 304, highly anti-rust.

185mm wider base,higher big wind and snow load ability.

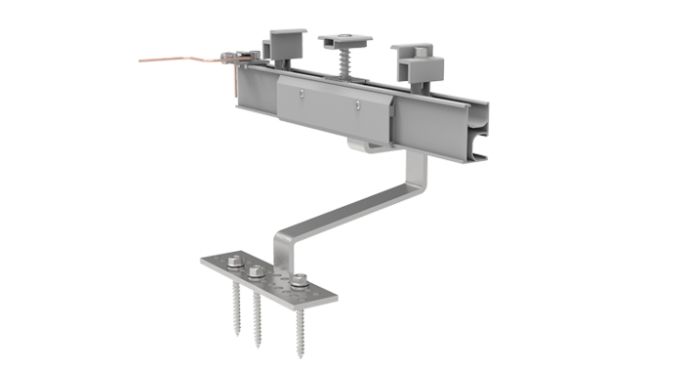

Easy compatible with WOCHN 5L rail system.

Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns.

Components

Components

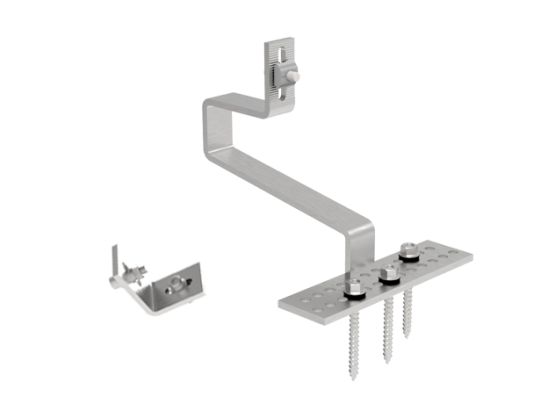

Part NameQuantitySpecificationMaterial

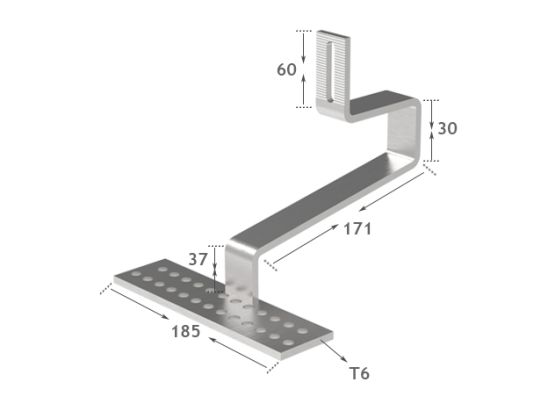

66# hook1185*127*171*6 mmStainless steel SUS304
Self driling screw3M6.3*80mmStainless steel
Nut Kits15# rail nut kitsAluminium and steel
L Stainless Angel  ( Option)160*70 mmStainless steel SUS304

Technical Data

Technical Data
Product nameTile roof hook 66# Mounting System
ApplicationTile roof
InclinationAny roof inclination
MaterialStainless SUS304
FinishNature
PV moduleFramed or Unfreamed
Module sizeSmall and Big modules
Module orientationPortrait and Landscape
Module directionAny direction
Design wind loadingUp to 60m/s
Design snow loadingUp to 1 metre
Roof heightUp to 20 metre
Design StandardEN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
